Description

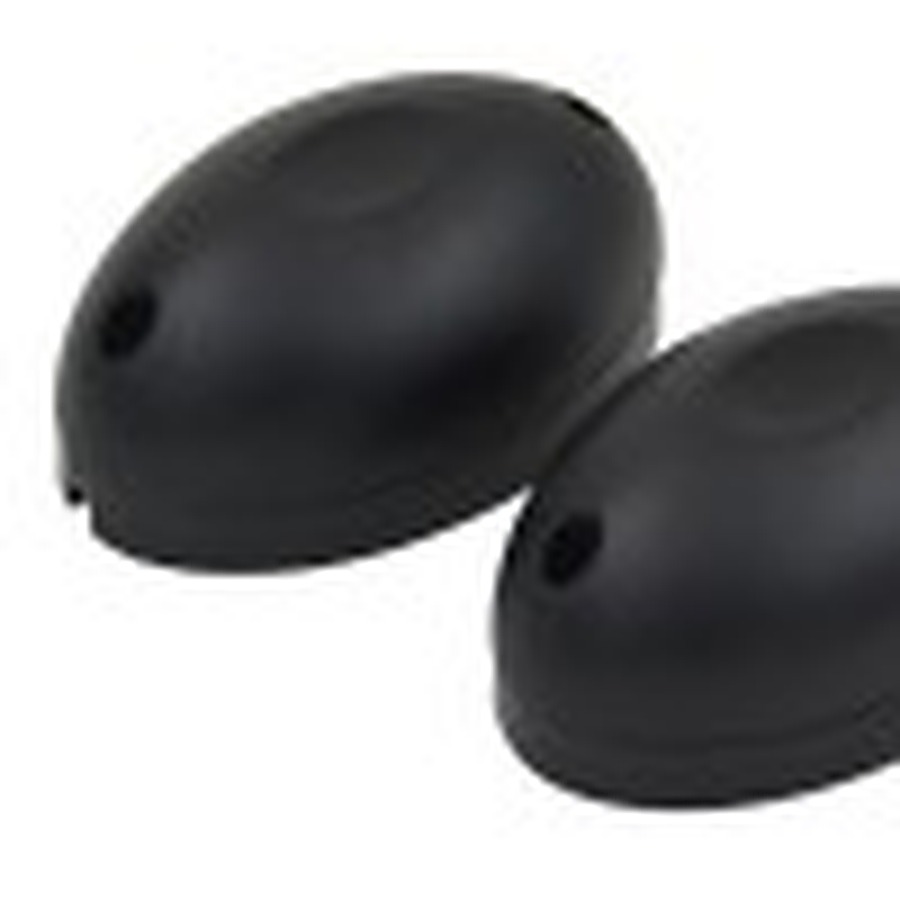

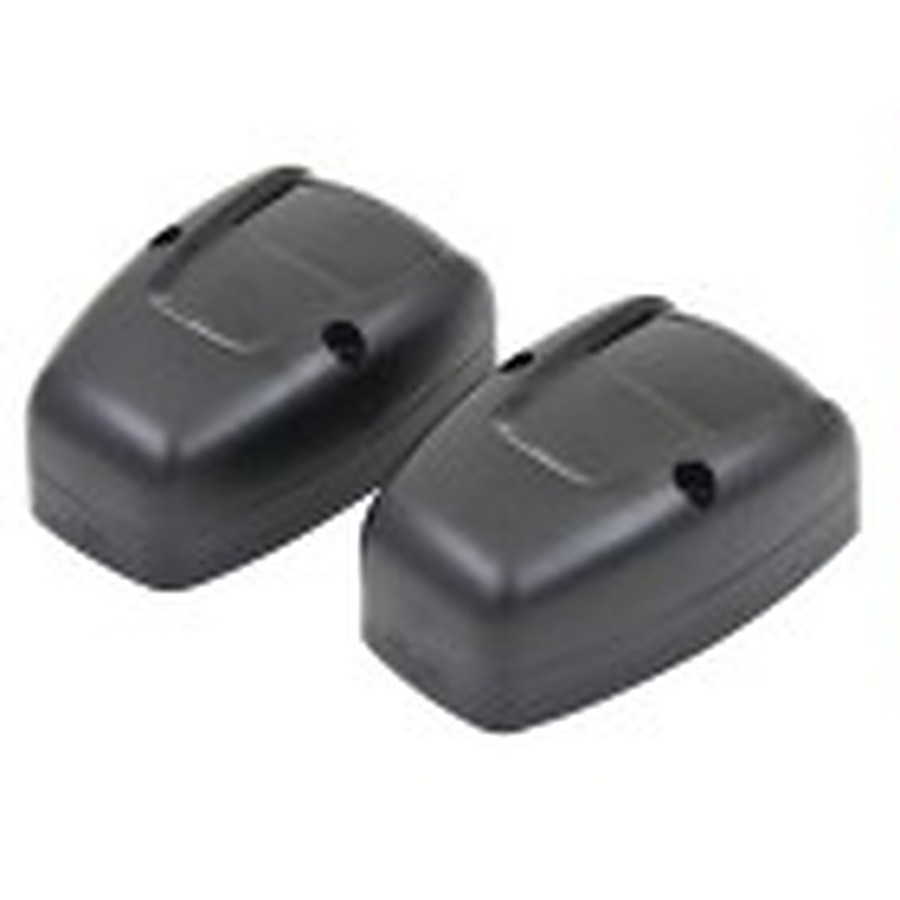

Infrared photocell safety beams for automatic gates and barriers. The PH15 gives a maximum inductive distance of 15 m and the PH25 up to 25 m, both powered by AC/DC 12/24V with a NO/NC relay output and IP55 waterproof housing.
Models
| MODEL | PH15 | PH25 |
|---|---|---|
| Inductive Distance | Max 15 m | Max 25 m |
| Size | 77 x 49 x 28 mm | 85 x 55 x 29 mm |
| Power Input | AC/DC 12/24V | |
| Relay Output | NO/NC | |
| Waterproof | IP55 | |
Functions & Advantages
- Detects people, vehicles and obstacles in the gate travel path.
- NO/NC relay output wires directly to the gate operator control board.
- AC/DC 12/24V power input suits most gate control boards.
- IP55 waterproof housing for outdoor installation.
- Two distances available: PH15 (max 15 m) and PH25 (max 25 m).
Product Photos
