Description

Anti-interference infrared photocells for automatic gates and barriers, with a maximum inductive distance of 15 m. AC/DC 12/24V power input, NO/NC relay output and IP55 waterproof housing, available in two housing shapes.

Models

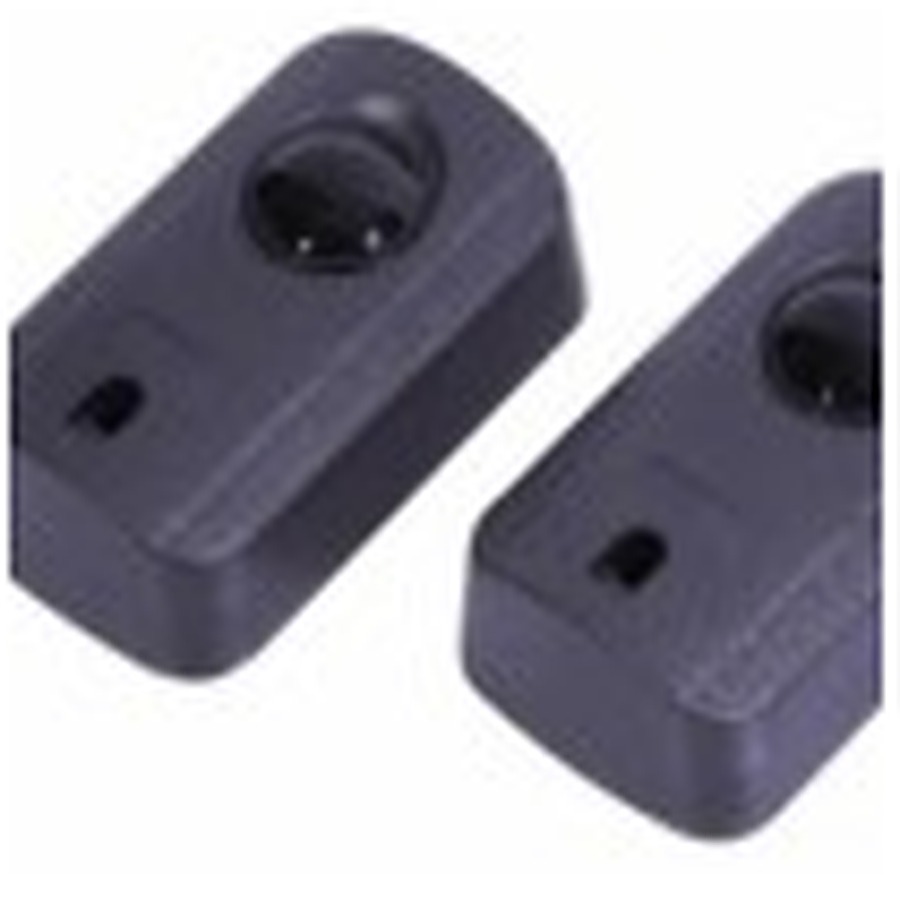

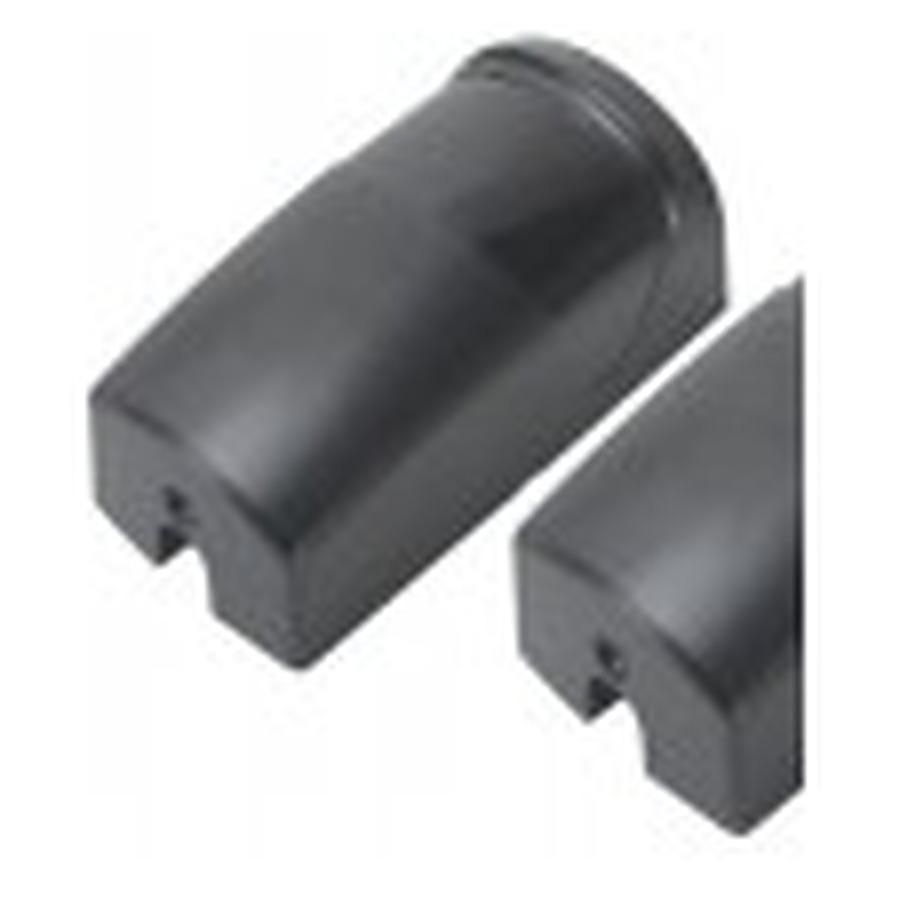

MODEL	PHAI-15A	PHAI-15B
Size	74 x 45 x 24 mm	73 x 37 x 26 mm
Inductive Distance	Max 15 m
Power Input	AC/DC 12/24V
Relay Output	NO/NC
Waterproof	IP55

Functions & Advantages

Anti-interference design for entrances where several infrared beams work close together.
Maximum inductive distance of 15 m.
NO/NC relay output wires directly to the gate operator control board.
AC/DC 12/24V power input suits most gate control boards.
IP55 waterproof housing for outdoor installation.
