Description

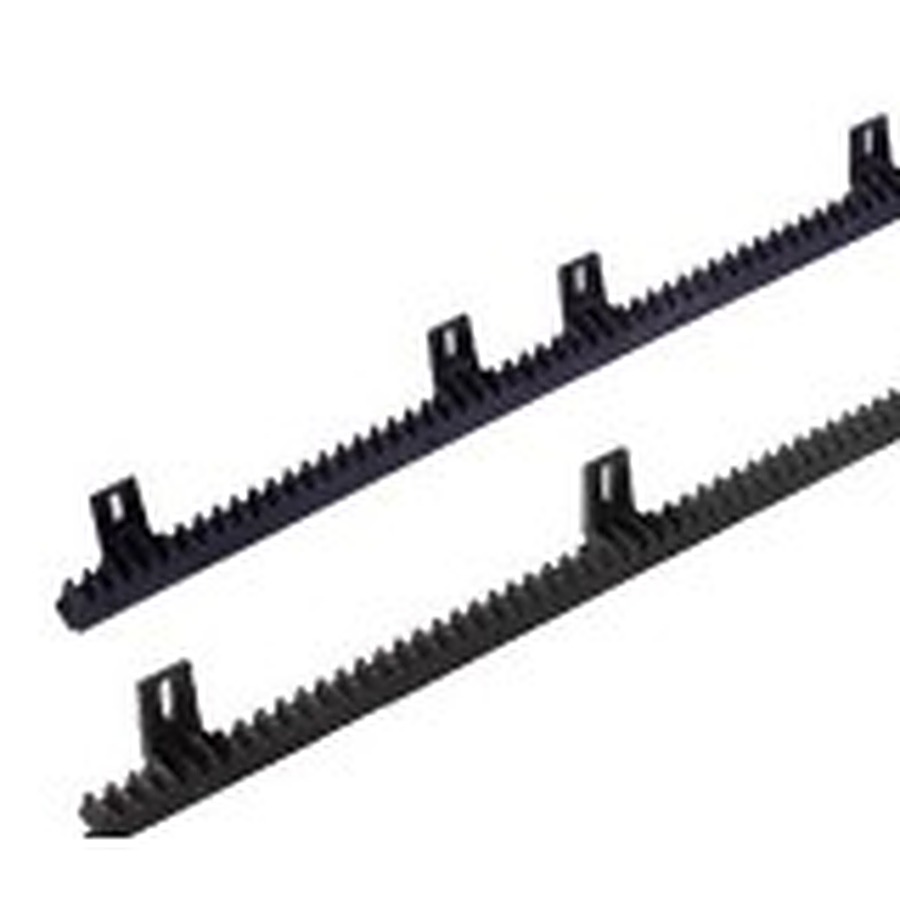

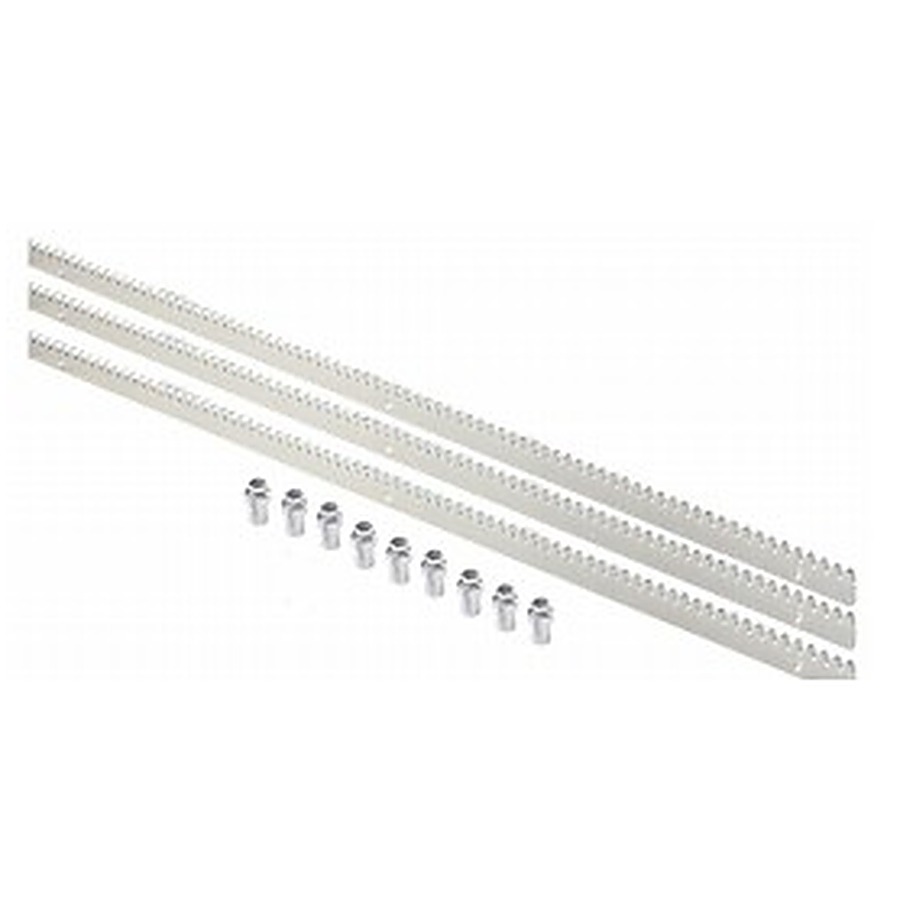

Gear racks for sliding gate operators. The nylon rack is steel enforced and available with 4 or 6 holes; the A3 steel rack is available in three sections. Both are mould 4 and supplied with bolts and nuts.

Models

MODEL	Nylon Gear Rack	Steel Rack
Material	Nylon with steel enforced	A3 steel
Mould	4	4
4 Holes	19.7 x 26 x 1050 mm, with 4 bolts and nuts	—
6 Holes	20 x 26.5 x 1080 mm, with 6 bolts and nuts	—
Size A	—	8 x 30 x 1005 mm
Size B	—	10 x 30 x 1005 mm
Size C	—	12 x 30 x 1005 mm

Functions & Advantages

Nylon gear rack with steel reinforcement, mould 4, supplied with 4 or 6 bolts and nuts.
Nylon rack sizes: 19.7 x 26 x 1050 mm (4 holes) and 20 x 26.5 x 1080 mm (6 holes).
Steel rack in A3 steel, mould 4, supplied with 3 bolts and nuts.
Steel rack sizes: 8 x 30 x 1005 mm, 10 x 30 x 1005 mm and 12 x 30 x 1005 mm.
Fixes to the gate leaf to form the drive rack of a sliding gate operator.
