Description

The ACSL200 is an oil-immersed AC sliding gate operator for gates up to 2000 kg. The gearbox and motor run in an oil bath, which reduces wear and noise and allows frequent operation, making it suitable for parking lots, apartment complexes and schools. Dimensions 202(W) x 257(L) x 323(H) mm.

Models

MODEL	SL200
Power Rate	550W
Torque	38N.m
Max Gate Weight	2000KG
Power Supply	AC220V/110V 50/60Hz
Motor Speed	1400r/min
Gate Speed	12m/min
Limit Switch	Magnetic/Spring Limit Switch
Noise	≤56dB
Working Temperature	-40°C ~ +60°C

Functions & Advantages

• Oil immersed gear and motor ensures long life.
• Overheating protection: when the temperature reaches the rated value it automatically cuts off the power to prevent the motor from burning.
• Easy to install: the clutch can be opened so the gate can be opened and closed manually when the power is cut off.
• Standard with soft start and soft stop, resistance rebound, auto close, one button reverse and other functions.
• Multiple interfaces: infrared sensor, warning light, wall switch etc.
• Regular packing components: motor x 1, remotes x 2, keys x 2, manual x 1, installation accessories.
• Optional accessories: warning light, photocell, WiFi controller, WiFi camera, gear racks, wall switch, RF keypads etc.

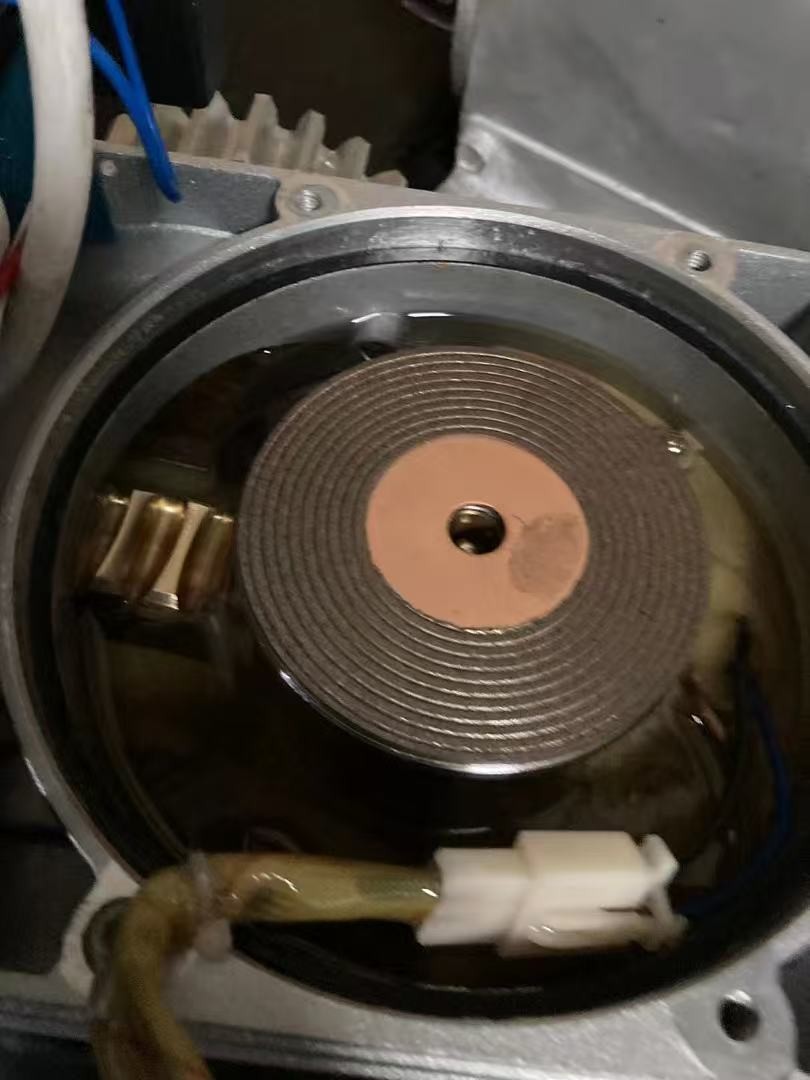

Oil-Immersed Structure

• Oil-immersed motors increase motor operating time and suit scenarios with frequent opening and closing, such as parking lots, apartments and schools.
• The internal worm gear is made of copper by default, which increases its service life. The internal oil lubricates the worm gear, reduces friction and greatly extends service life.

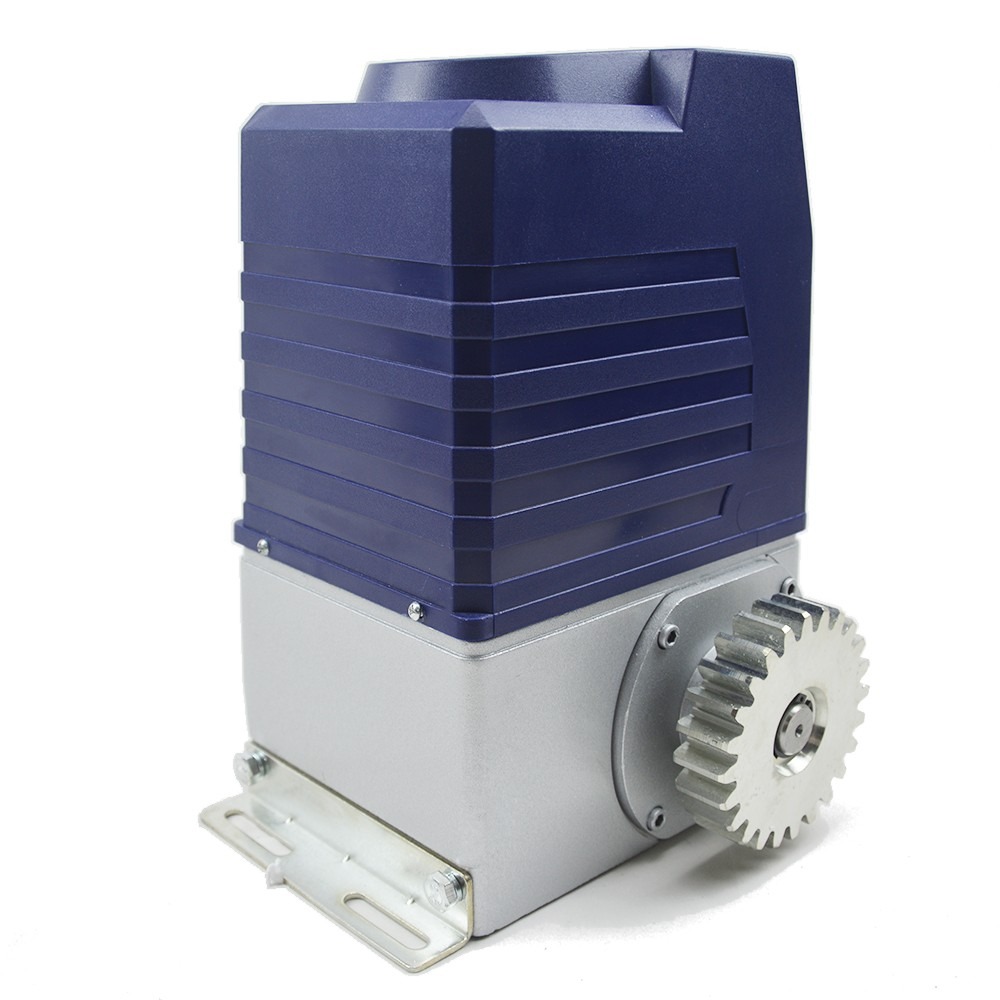

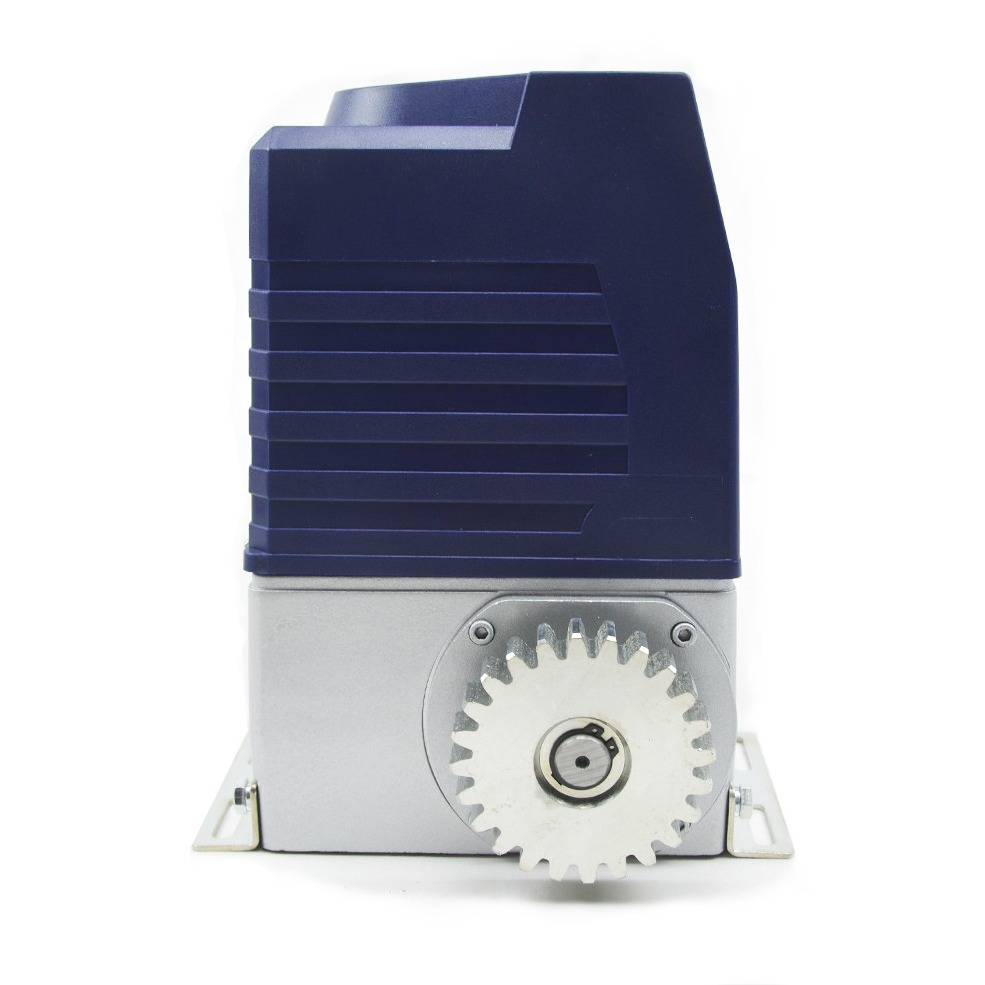

Product Photos
