Description

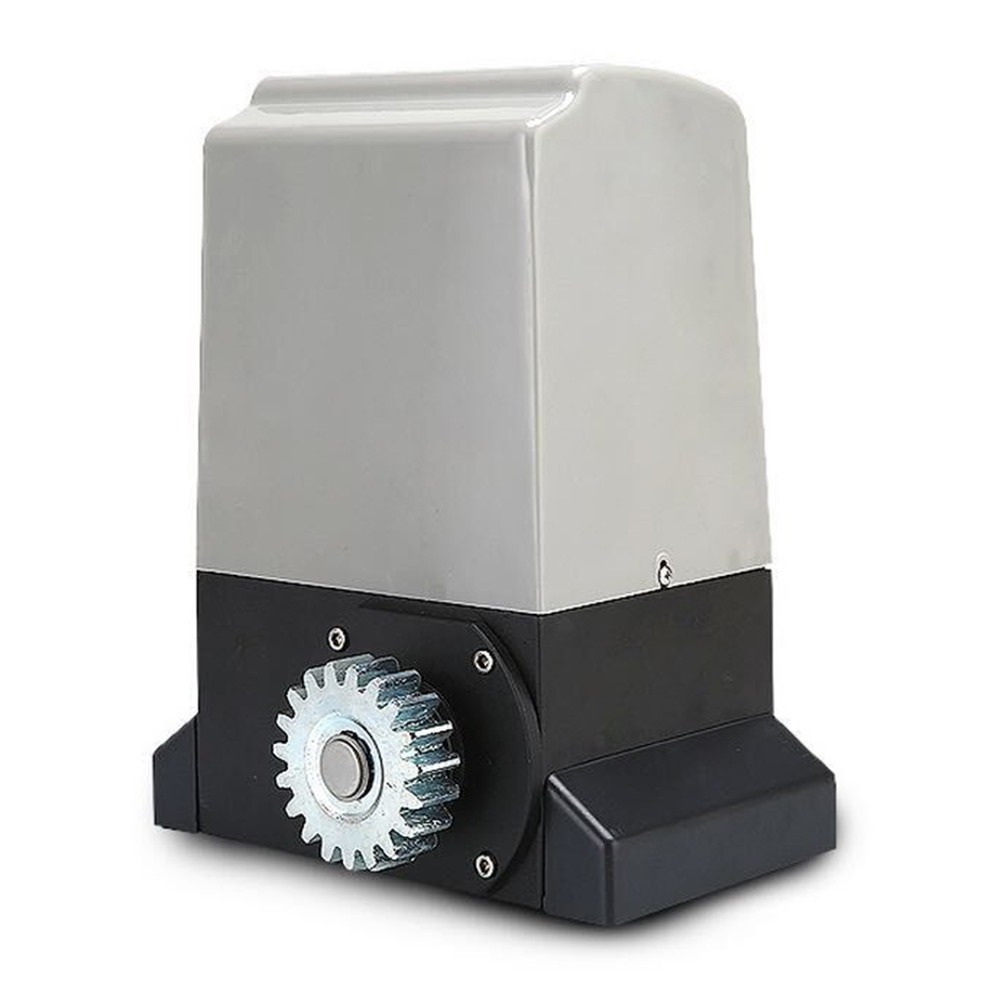

The AC800 belongs to the AC300-AC2000 series of AC sliding gate operators, covering gate weights from 300 kg up to 2000 kg. Overheating protection, magnetic/spring limit switch, soft start and soft stop, and a manual clutch for operation during power failure. Dimensions 202(W) x 275(L) x 311(H) mm.

Models

MODEL	AC300	AC600	AC800	AC1200	AC1500	AC2000
Power Rate	150W	280W	370W	550W	750W	1200W
Torque	14N.m	18N.m	22N.m	27N.m	35N.m	45N.m
Max Gate Weight	300KG	600KG	800KG	1200KG	1500KG	2000KG
Power Supply	AC220V/110V 50/60Hz
Motor Speed	1400r/min
Gate Speed	12m/min
Limit Switch	Magnetic/Spring Limit Switch
Noise	≤56dB
Working Temperature	-40°C ~ +60°C

Functions & Advantages

Overheating protection: when the temperature reaches the rated value it automatically cuts off the power to prevent the motor from burning.
Easy to install: the clutch can be opened so the gate can be opened and closed manually when the power is cut off.
Standard with soft start and soft stop, resistance rebound, auto close, one button reverse and other functions.
Multiple interfaces: infrared sensor, warning light, wall switch etc.
Regular packing components: motor x 1, remotes x 2, keys x 2, manual x 1, installation accessories.
Optional accessories: warning light, photocell, WiFi controller, WiFi camera, gear racks, wall switch, RF keypads etc.
