Description

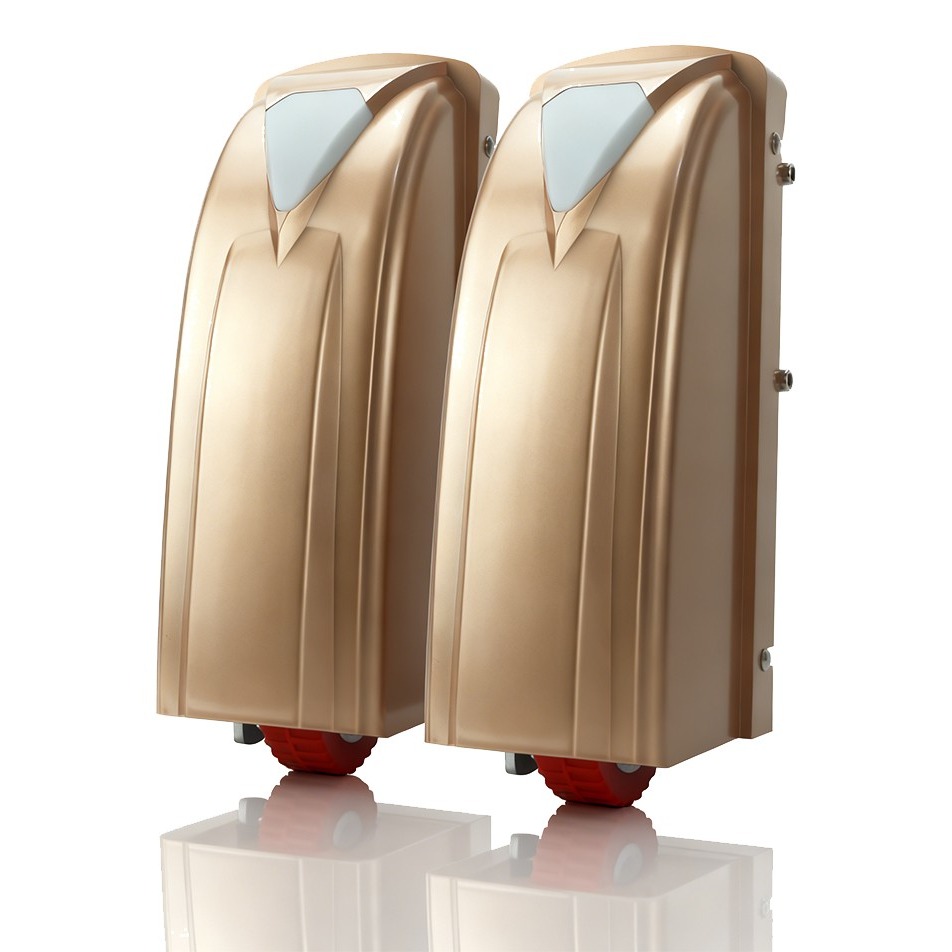

The RSM03 is a DC24V wheel swing gate operator for swing gates up to 600 kg and 6 m per leaf, designed for gates running on wheels. Turbo worm transmission with a mechanical limit tolerates ground unevenness of 0-80 mm and pushes with 600N at a gate speed of 10-15 m/min. A separate control box lets you choose single or double gate control, and the clutch can be released for manual operation during a power failure.

Models

MODEL	RSM03
Input Voltage	DC24V
Power Rate	80W
Gate Speed	10-15 meter/min
Max Gate Weight	600KG/leaf
Max Gate Width	6 meter/leaf
Tolerance To Ground Uneveness	0-80mm
Noise	≤56dB
Pushing force for opening	600N
Working Temperature	-40°C ~ +60°C

Functions & Advantages

Turbo worm transmission mechanism, transmission stability.
Mechanical limit, easy installation and adjustment, safe and reliable.
External control box — single or double gate control selectable.
Easy to install: the clutch can be opened so the gate can be opened and closed manually when the power is cut off.
Multiple interfaces (DC24V backup battery, infrared sensor, alarm light, WiFi module, phone visual system, external buttons etc.).

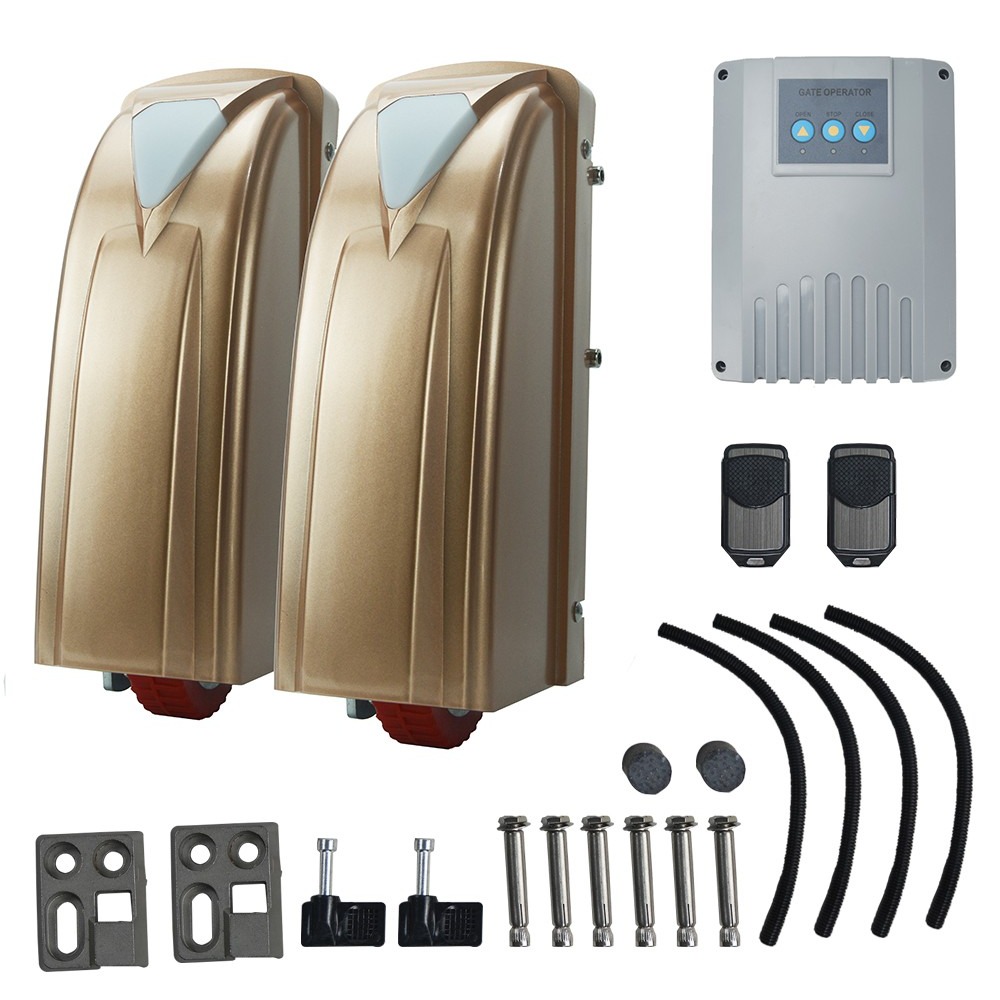

Regular packing components: motor x 2, control box x 1, remotes x 2, keys x 2, manual x 1, installation accessories.
Optional accessories: backup battery, warning light, photocell, WiFi controller, WiFi camera, wall switch, RF keypads etc.
