Description

The AS230K / AS330K is a DC24V arm swing gate operator for swing gates up to 500 kg and 4 m per leaf, with an opening time of 18s and 2500N.m output torque. It is driven by a thread pole with soft start / soft stop and automatically backs off when the gate touches an obstacle. One or two gate leaves can be driven (the AS330K kit includes two motors and a control box) and the clutch can be released for manual operation during a power failure.

Models

MODEL	AS230K / AS330K
Input Voltage	DC24V
Power Rate	100W x 2
Opening Time	18s
Max Gate Weight	500KG/leaf
Max Gate Width	4 meter/leaf
Motor Speed	2600r/min
Noise	≤56dB
Output Torque	2500N.m
Working Temperature	-40°C ~ +60°C

Functions & Advantages

Stable power is its biggest feature.
Large swing gate opener motor, powerful, full function, no need to do regular maintenance, very stable and reliable operation.
Driven by thread pole.
Auto-shuttering back the door against touching, soft start and soft stop.
Can choose one or two gates to open or close.
In the event of a power failure, the clutch can be released and the gate opened manually.

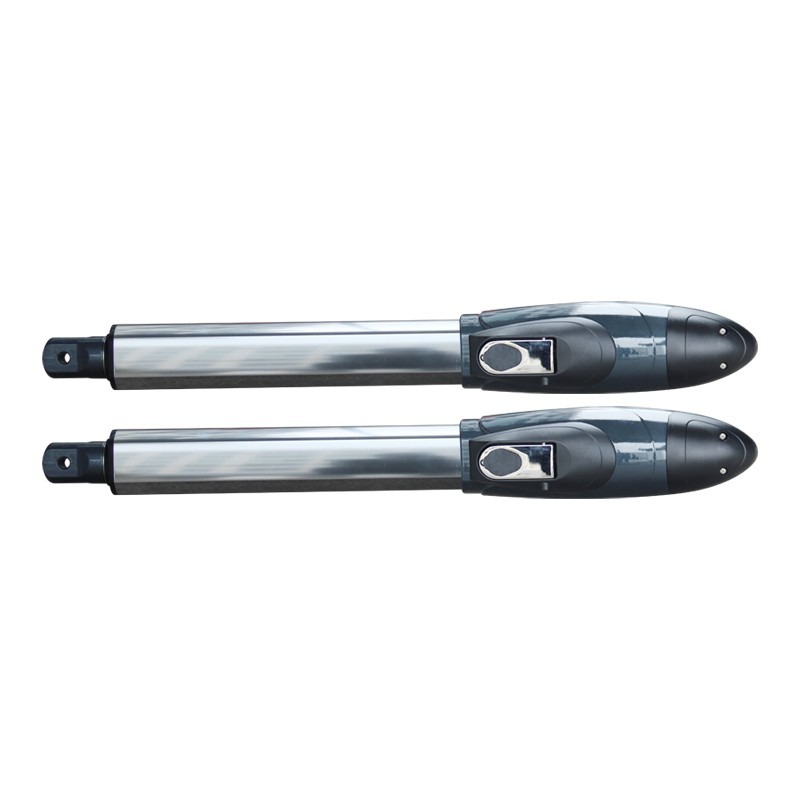

Regular packing components: motor x 2, control box x 1, remotes x 2, keys x 2, manual x 1, installation accessories.
Optional accessories: backup battery, warning light, photocell, WiFi controller, WiFi camera, wall switch, RF keypads etc.
