Description
The ACSL3000-SL6000 series covers AC industrial sliding gate operators for heavy gates from 3000 kg up to 6000 kg. Turbo worm transmission with end-cover protected gears, a built-in inverter and continuous duty of 3-4 hours make them suitable for industrial and commercial entrances. Dimensions 258(W) x 309(L) x 496(H) mm.
Models
| MODEL | ACSL3000 | ACSL4000 | ACSL6000 |
|---|---|---|---|
| Power Rate | 1300W | 1500W | 2200W |
| Torque | 170N.m | 220N.m | 280N.m |
| Max Gate Weight | 3000KG | 4000KG | 6000KG |
| Power Supply | AC220V/110V 50/60Hz | 3 Phase AC380V 50/60Hz | |
| Motor Speed | 1400r/min | ||
| Gate Speed | 12m/min | ||
| Limit Switch | Spring Limit Switch | ||
| Noise | ≤56dB | ||
| Working Temperature | -40°C ~ +60°C | ||
Functions & Advantages
- Turbo worm transmission mechanism, transmission stability.
- Gear with end cover protection, more secure and reliable.
- It could work continuously for 3-4 hours.
- Easy to install: the clutch can be opened so the gate can be opened and closed manually when the power is cut off.
- Built-in inverter for motor.

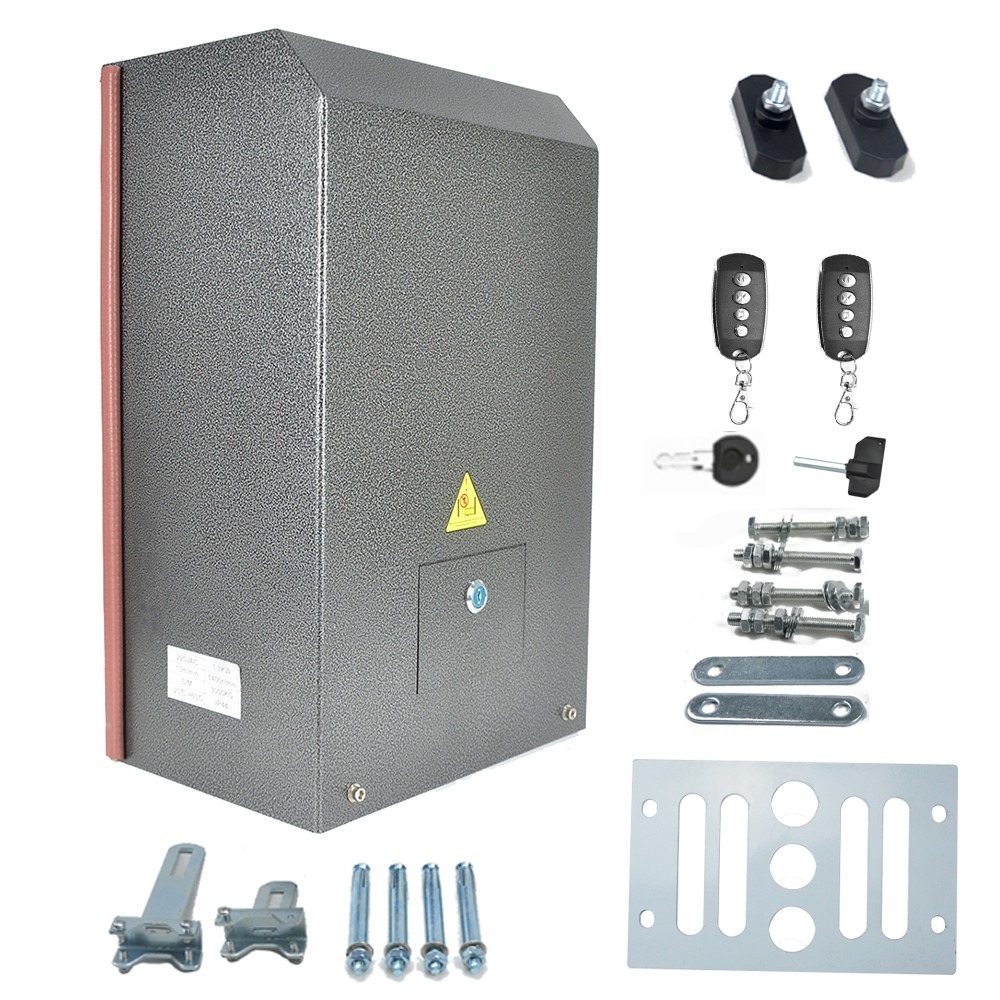

- Regular packing components: motor x 1, remotes x 2, keys x 2, manual x 1, installation accessories.
